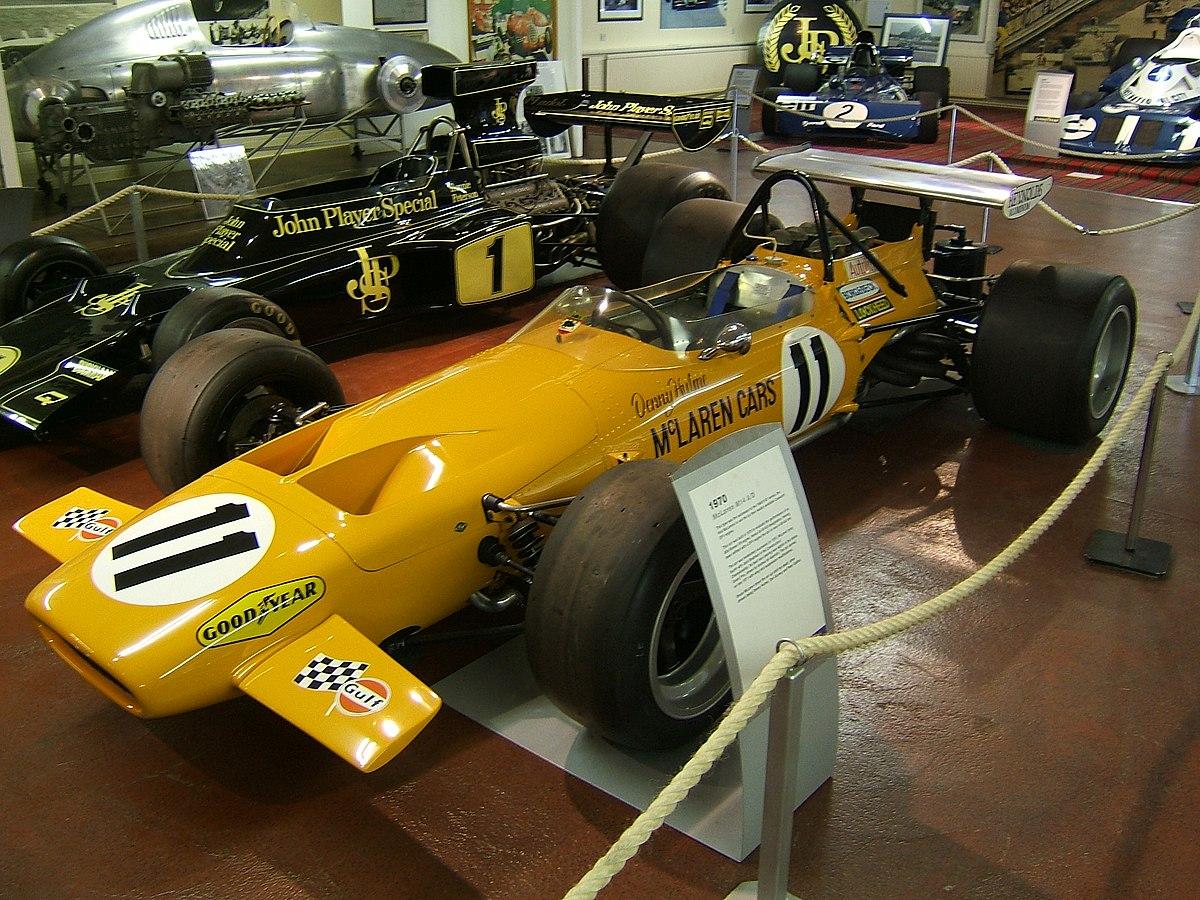

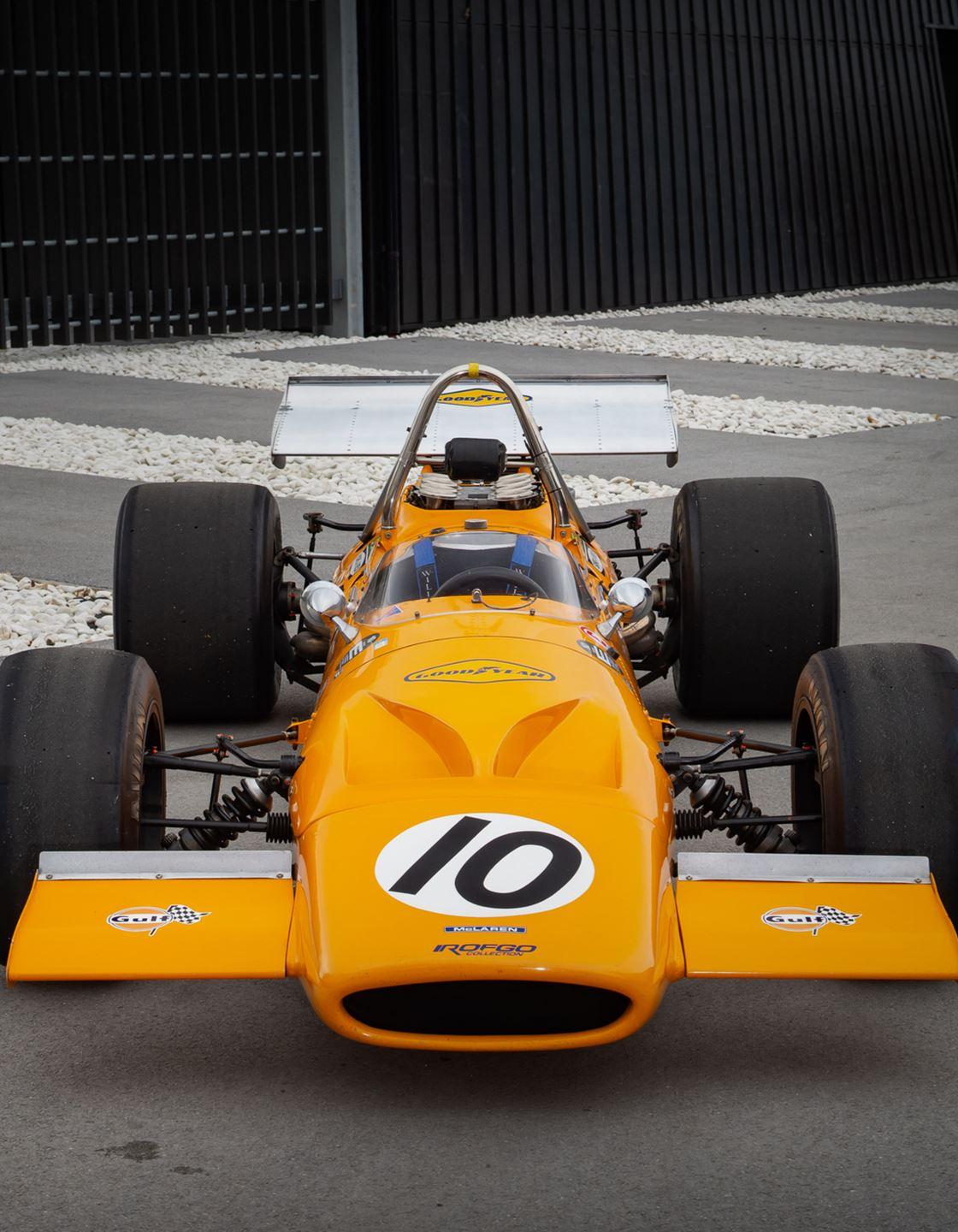

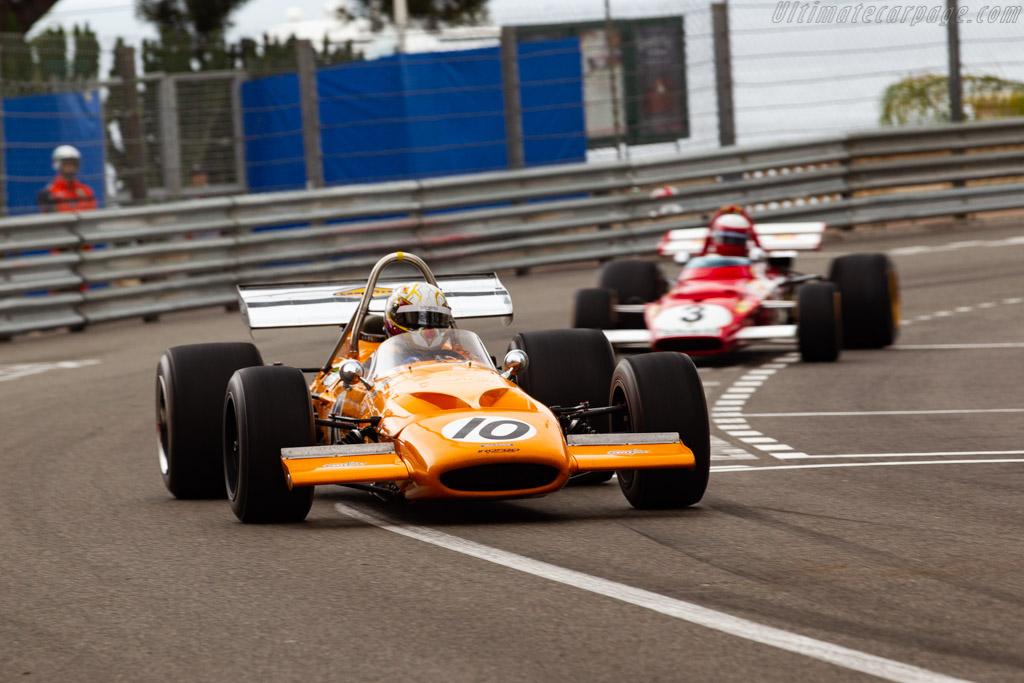

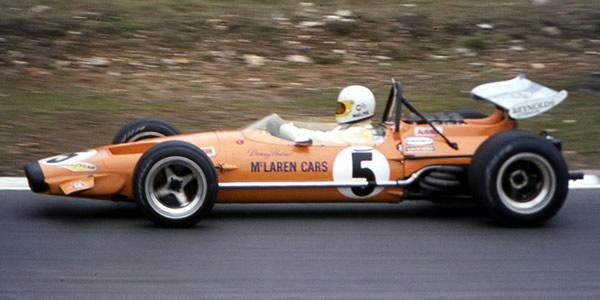

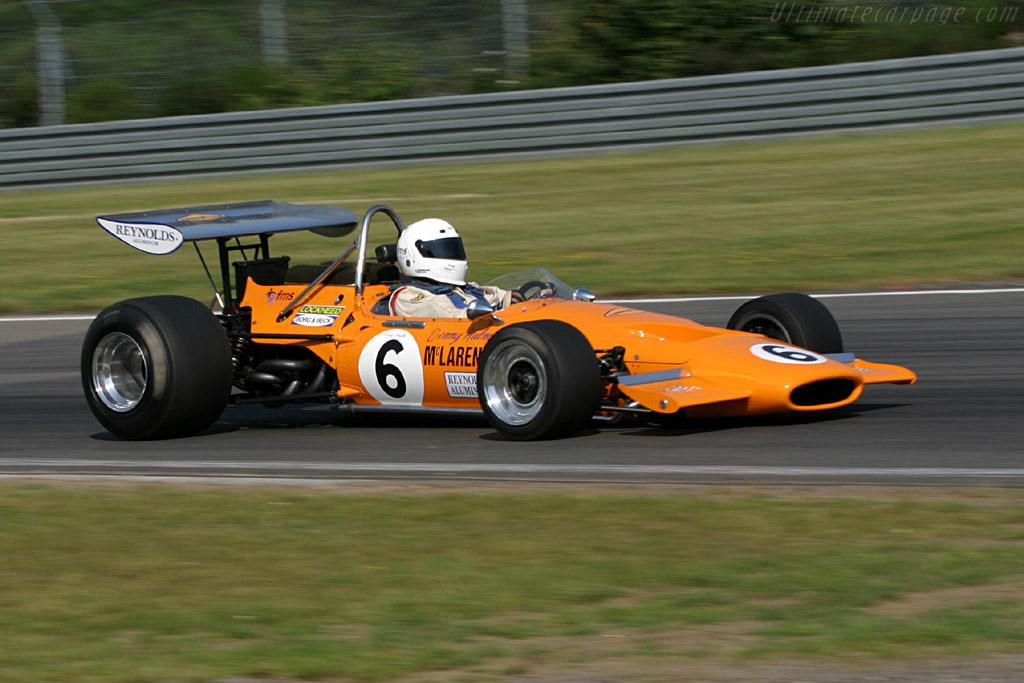

1970 McLaren M14

The McLaren M14 is a 1970 Formula One racing car that was designed and manufactured by the British racing team, McLaren. This car was built to comply with the regulations set by the Fédération Internationale de l'Automobile (FIA) for the 1970 Formula One World Championship. The M14 was primarily driven by Denny Hulme and Dan Gurney, and it was considered to be one of the most advanced cars of its time.

The McLaren M14 was a mid-engined monocoque chassis, which was made entirely out of aluminum. The car was powered by a Ford-Cosworth DFV V8 engine, which had a displacement of 3.0 liters and produced around 420 horsepower. The power was transmitted to the wheels via a Hewland FG400 5-speed manual gearbox. The M14 was equipped with a double-wishbone suspension system, with inboard-mounted shocks and springs.

On the outside, the M14 featured a distinct design, with the car's bodywork composed of sharp angles and sweeping lines. The nose of the car was particularly interesting, with a raised area designed to channel air over the top of the car and onto the rear wing. Additionally, the side-pods were designed to channel air into the engine, improving its cooling and improving its overall performance.

The McLaren M14 also featured a number of advanced aerodynamic features, which helped to improve its performance on the track. The car had a large rear wing, which was mounted above the gearbox and provided significant downforce. The wing could be adjusted to suit different track conditions, allowing the driver to optimize the car's performance for each individual track.

The M14 was also equipped with a number of advanced safety features, designed to protect the driver in the event of an accident. The car had a fuel cell, which was mounted directly behind the driver, and was designed to prevent fuel leaks in the event of a crash. Additionally, the M14 had a fire suppression system, which could extinguish any fires that might occur.

Overall, the McLaren M14 was an incredibly advanced racing car for its time, with a number of innovative features designed to improve its performance and safety. With its powerful engine, advanced aerodynamics, and high-tech suspension system, the M14 is still regarded as one of the most impressive Formula One cars ever built.
